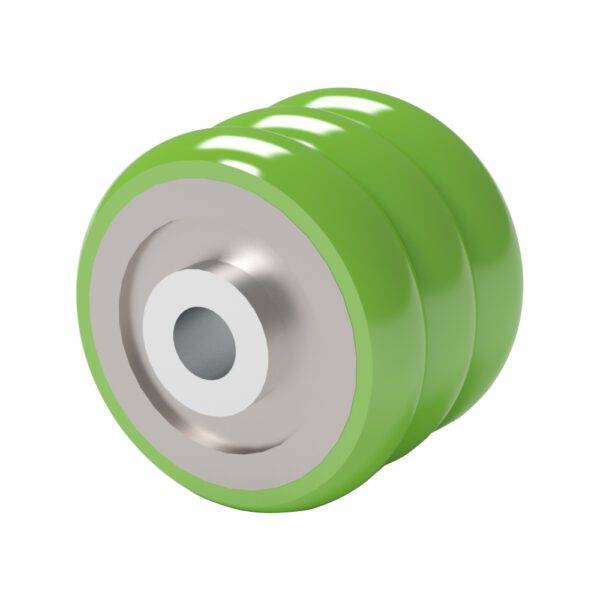

5×3 TWERGO ErgoTread Caster Wheel
5×3 TWERGO ErgoTread Caster Wheel
SKU: 05302-44-12
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Please log in to access the configurator.
Related Products
No related products available.
Specifications
Product Type: Wheel
Capacity: 1,160 lbs.
Wheel Material: ErgoTread
Wheel Type: TWERGO
Wheel Width: 3"
Wheel Diameter: 5"
*Temperature Range (Continuous): 0 to 180°F
*Temperature Range (Intermittent): -50 to 200°F
Brand: TWERGO
Bearing Type: Precision Ball Bearing
Hub Length: 3.5
Bore: 0.75
SKU: 05302-44-12
Caster Weight: 3.97 lbs.
*High temperature grease must be used over 200°F
Product Description
This 5-inch by 3-inch TWERGO® wheel features precision sealed ball bearings for maximum rolling performance, performance that is maximized through our patented, multiple wheel-in-one design. This wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. This wheel and polyurethane formulation are a popular combination that can achieve a push/pull force reduction of 25%, all while carrying loads up to 1160 lbs.
Description
This 5-inch by 3-inch TWERGO® wheel features precision sealed ball bearings for maximum rolling performance, performance that is maximized through our patented, multiple wheel-in-one design. This wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. This wheel and polyurethane formulation are a popular combination that can achieve a push/pull force reduction of 25%, all while carrying loads up to 1160 lbs.
